Details

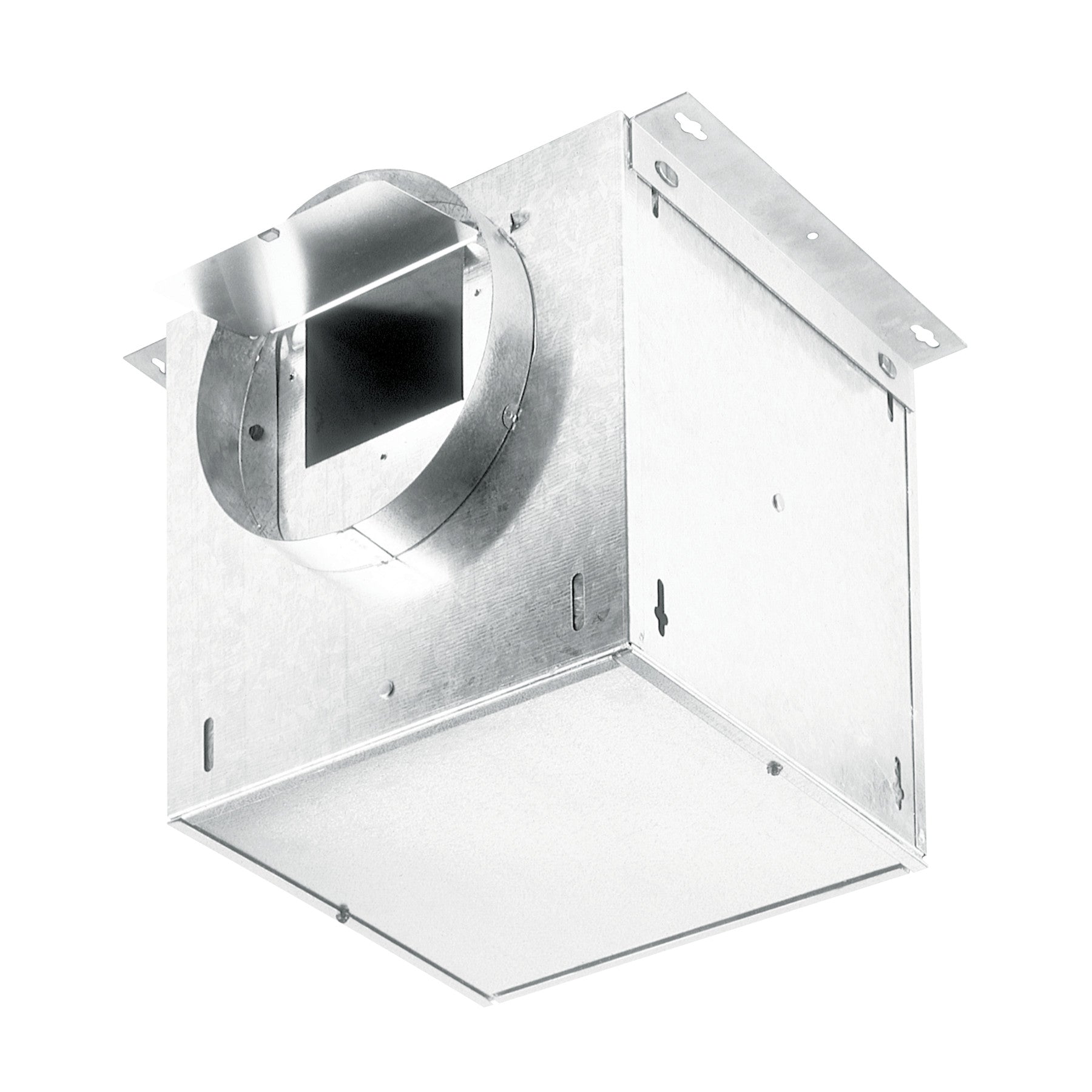

280 CFM In-Line Blower for use with Broan® Range Hoods
280 CFM
280 CFM In-line blower for use with Broan Range Hoods.
Compatible
This quiet performance solution works with all Broan range hoods designed for use with external blowers.
Continuous Operation
The permanently lubricated, thermall protected plug-in motor is designed for continuous operation.
Specially Designed
Specially designed resilient motor mounts and housing isolation mounts prevent vibration noise to ensure quiet operation.
Flexible Duct

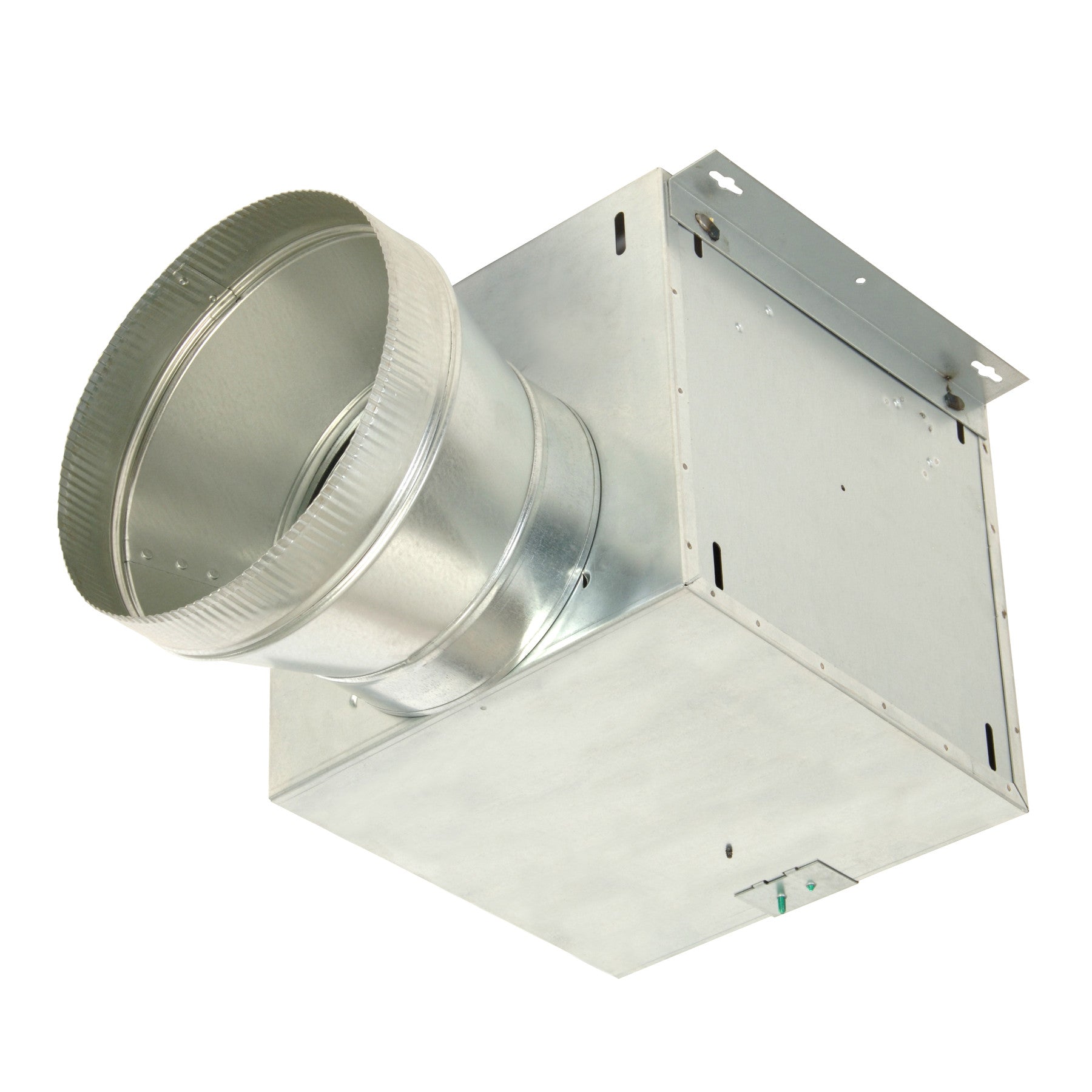

Flexible duct design allows straight-through or right-angle connections with built-in damper.
Hassle-free Installation

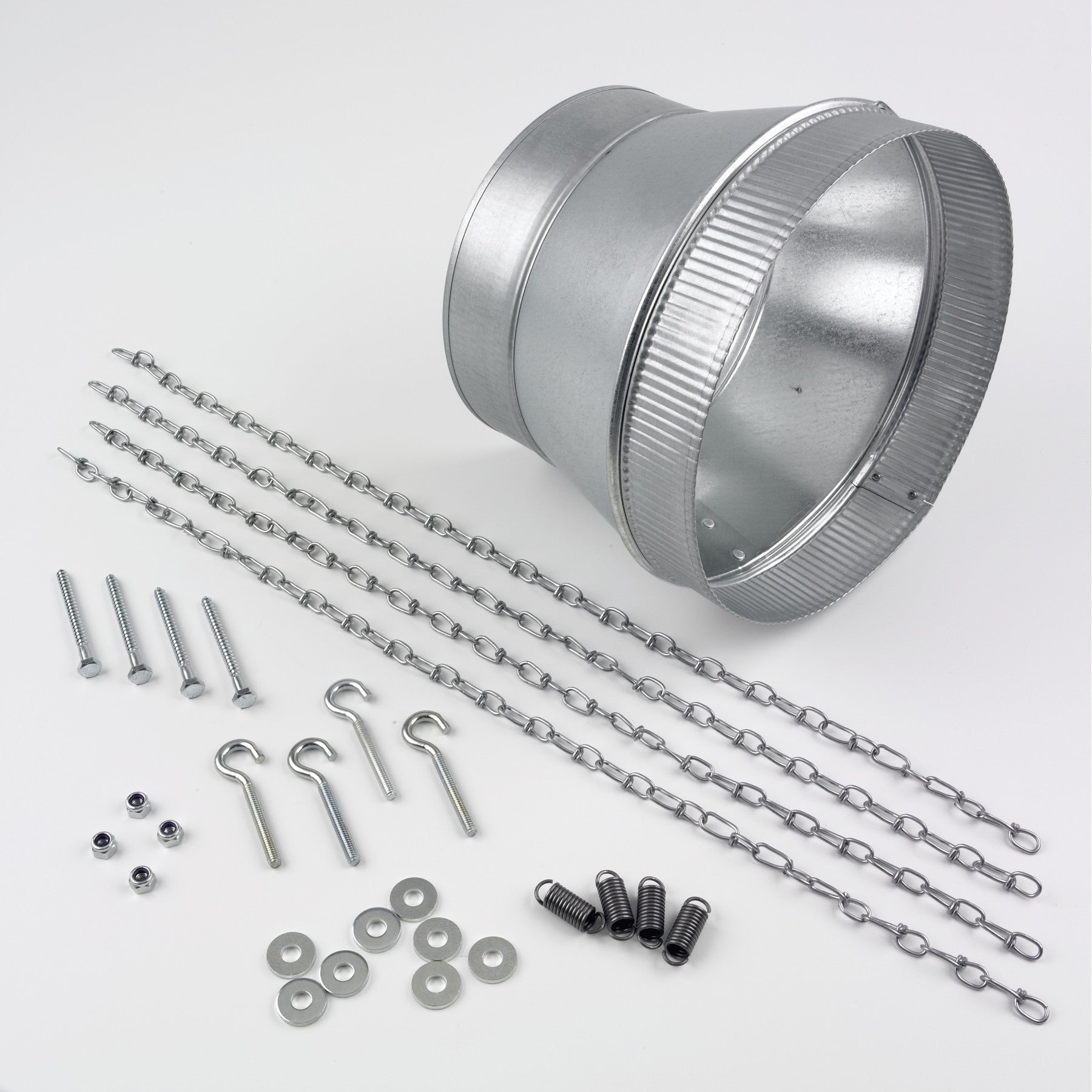

8-position mounting brackets or suspends with special suspension chains (hanger kit included) for hassle-free installation.
General
Brand
BROAN
Model
HLB3
Category
Blowers And Inserts
Colour
Stainless
Features
Maximum CFM
280
Duct Size
8
Manufacturers Warranty - Parts (Years)
1
Manufacturers Warranty - Labour (Years)
1
Dimensions
Width
12.25 in
Height
11.75 in
Depth
12.25 in
Weight
12.6 kg
DISCLAIMER: Please note these documents are for planning purposes only and may change without notice. For complete details, please refer to any documents packed with the product.
11.75″ / 29.85 cm
Height
12.6 kg / 27.78 lbs
Weight
12.25″ / 31.115 cm
Depth
12.25″ / 31.12 cm
Width
