Details

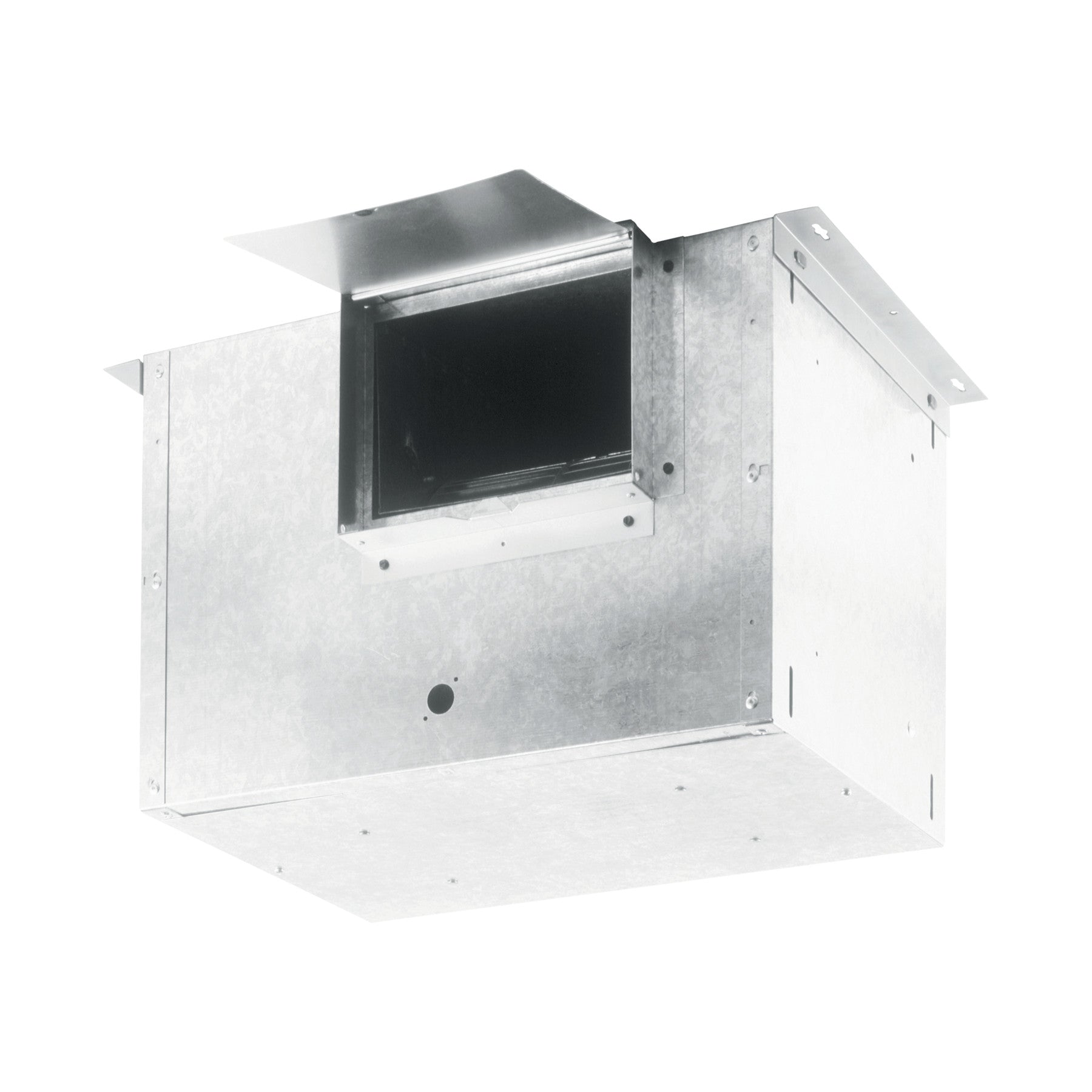

The Broan External In-Line Blower is designed and cULus certified for use with Broan-NuTone® products only. A powerful yet quiet blower -exhausts the cooking area from a remote location. Installed remotely in the interior of the home.
800 CFM
800 CFM In-line blower for use with Broan Range Hoods.
Compatibility
This quiet performance solution works with all Broan range hoods designed for use with external blowers.
Continuous Operation
The permanently lubricated, thermall protected plug-in motor is designed for continuous operation.
Quiet Operation
Specially designed resilient motor mounts and housing isolation mounts prevent vibration noise to ensure quiet operation.
Flexible Duct Design

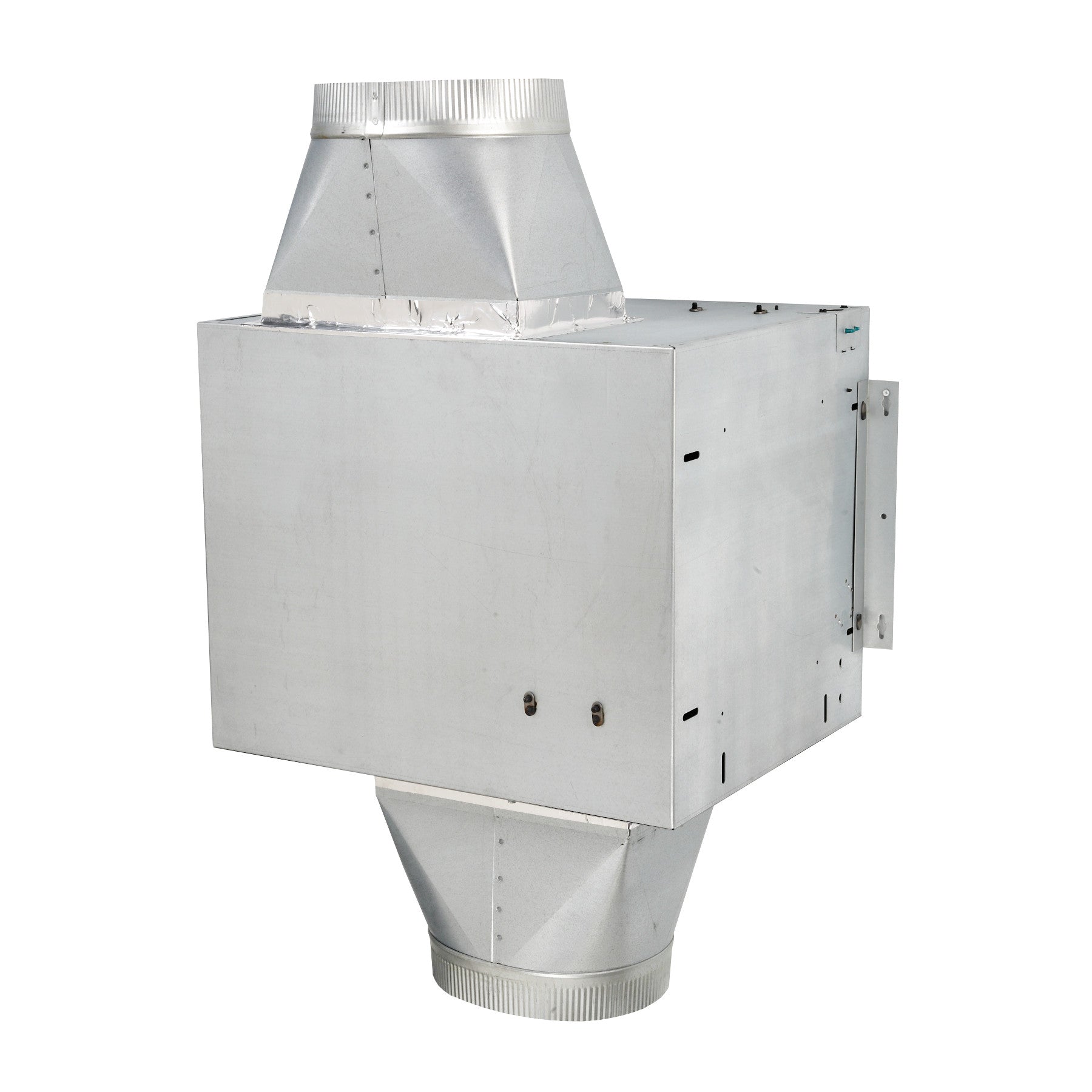

Allows straight-through or right-angle connections with built-in damper.
Hassle-free Installation

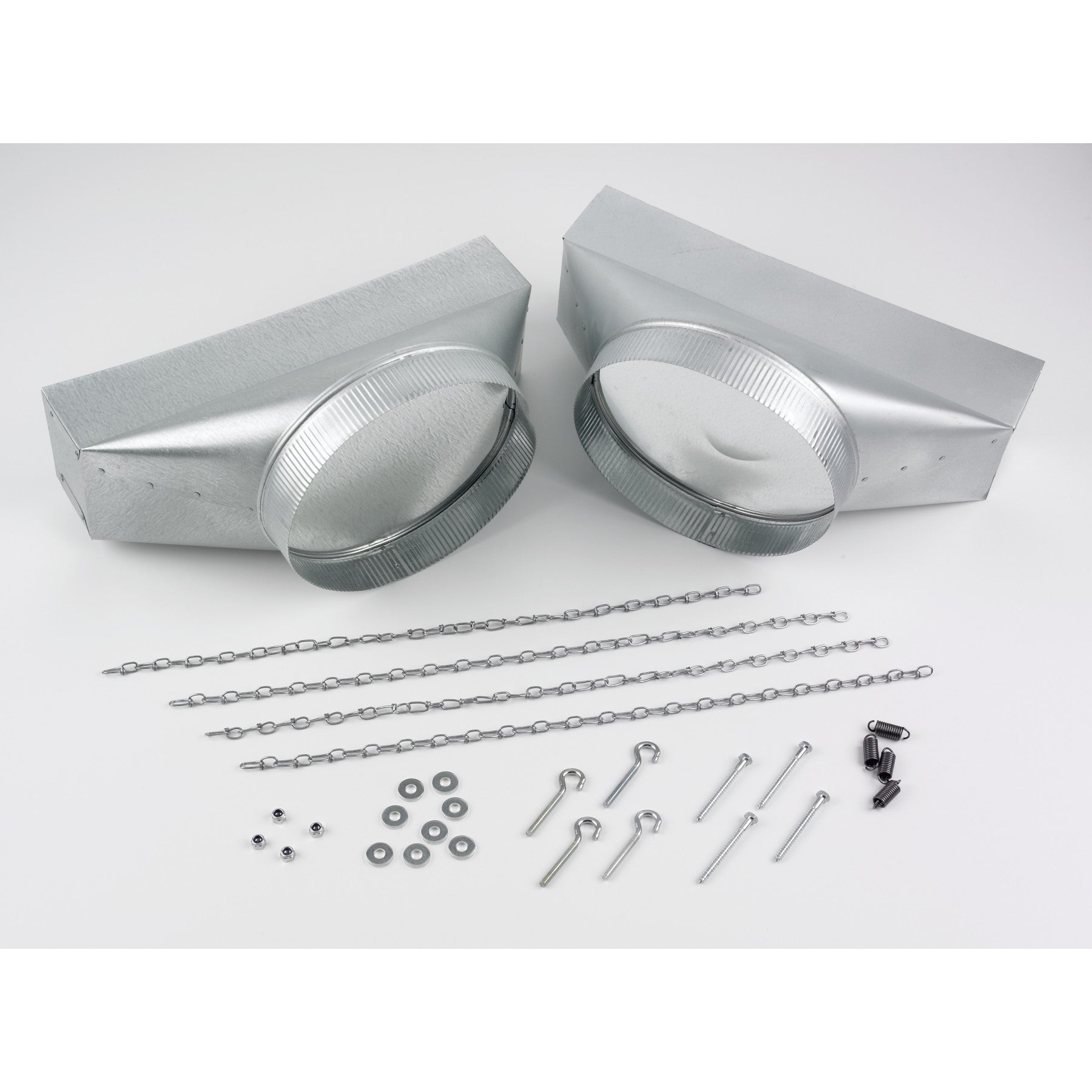

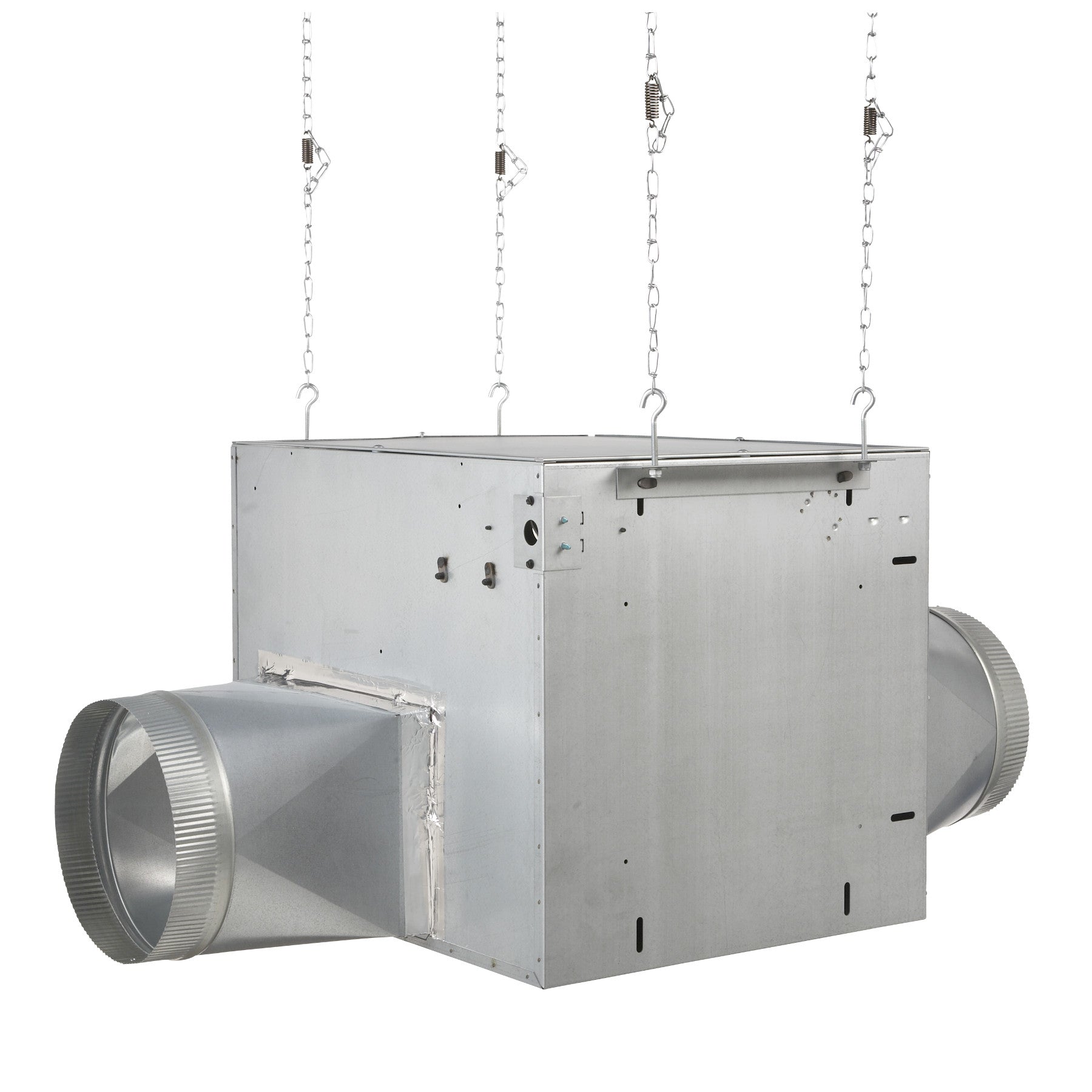

8-position mounting brackets or suspends with special suspension chains (hanger kit included) for hassle-free installation.
General
Brand
BROAN
Model
HLB9
Category
Blowers And Inserts
Colour
Stainless
Features
Maximum CFM
800
Duct Size
10
Manufacturers Warranty - Parts (Years)
1
Manufacturers Warranty - Labour (Years)
1
Dimensions
Width
22 in
Height
18 in
Depth
18 in
Weight
33.1 kg
DISCLAIMER: Please note these documents are for planning purposes only and may change without notice. For complete details, please refer to any documents packed with the product.
18″ / 45.72 cm
Height
33.1 kg / 72.97 lbs
Weight
18″ / 45.72 cm
Depth
22″ / 55.88 cm
Width
