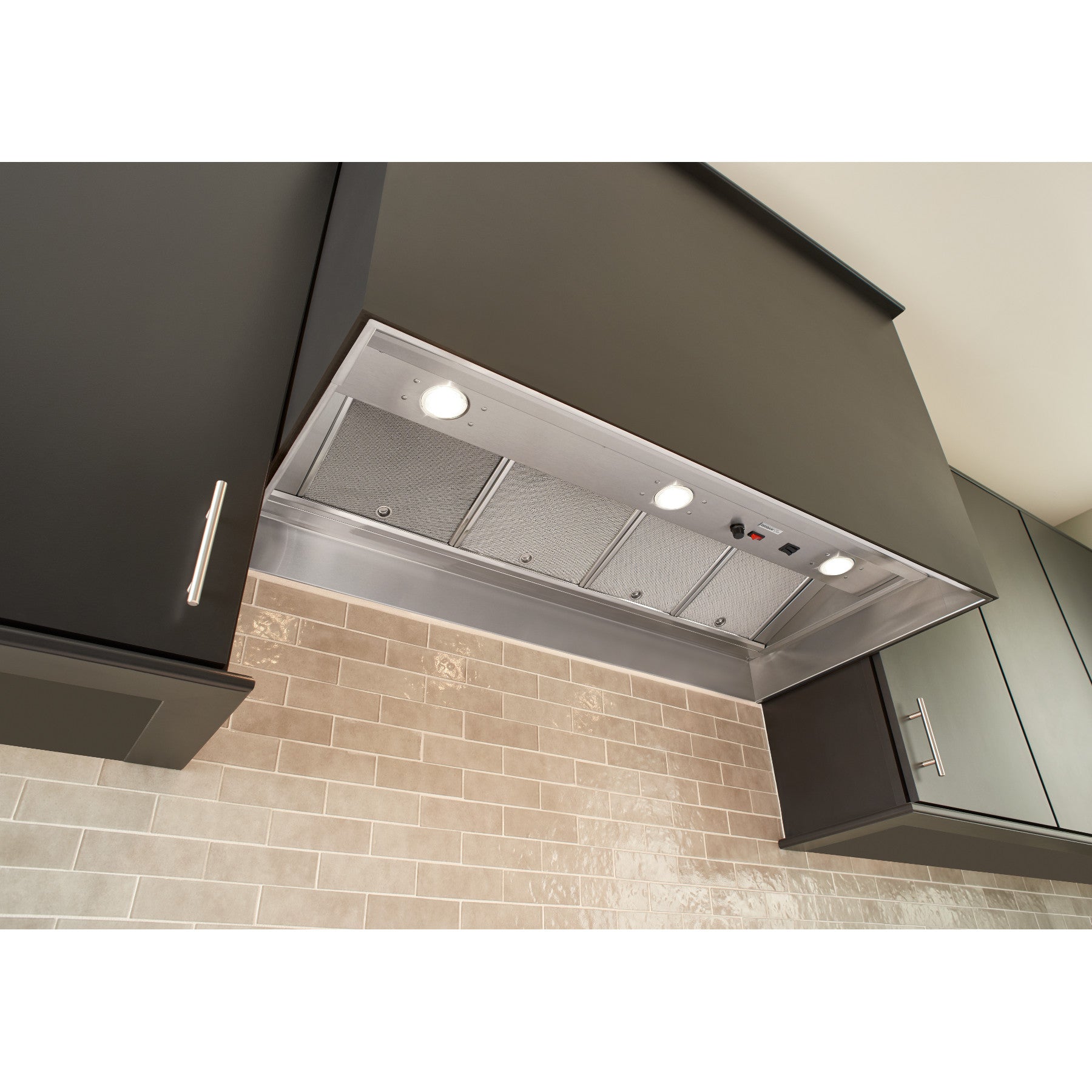

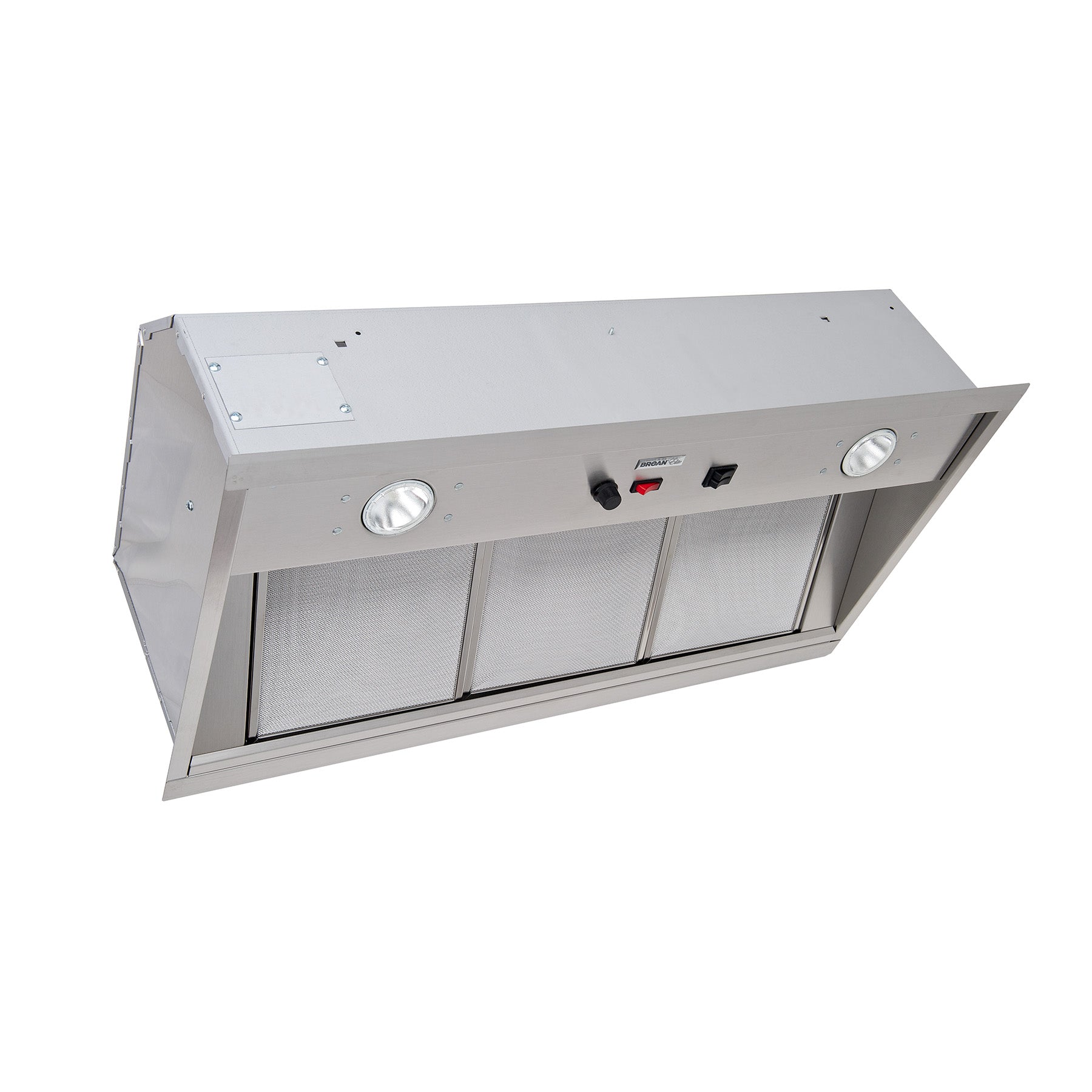

The Broan Elite RMIP Pro-Style Insert fits flush with the bottom of the cabinet or custom hoods. Choice of internal or external centrifugal blowers from 500 to 1500 CFM with multi-speed controls provide quiet and effective performance. Halogen lighting complements the beauty of its fully-enclosed, easy to clean bottom. **Blower Sold Separately**
Design

Especially designed to be installed in custom hood for use over residential commercial-style cooking surfaces.

Precise Speed

Infinitely adjustable blower control is designed to provide the precise speed you need for whatever is cooking.

Lighting

Two Halogen bulbs provide brilliant lighting over the cooktop and surrounding area (uses two 50-watt, PAR20 Bulbs - Not Included).

Dishwasher-safe

Three dishwasher-safe mesh filters are included; stainless steel baffle filters are optional and add to your hood's professional performance (RBFIP33, sold separately).

Heat Sentry®

Heat Sentry® adjusts speed of blower to High automatically in case of excess heat, to prolong product life.

Select the proper blower

Choose from 460 or 850 CFM Internal (P5 or P8), or External blower options: four Exterior, 600, 900, 1200 or 1500 CFM (331H, 332H, 335 or 336), or four In-Line, 280, 600, 800, or 1100 CFM (HLB3, HLB6, HLB9 or HLB11). Blowers sold separately.

Compatibility

Compatible with optional Broan Make-up Air Dampers (MD6TU or MD8TU, sold separately) to fit 6" or 8" ducting and help to balance the air pressure when the range hood is in use, keeping your environment comfortable.

General

Brand
BROAN
Model
RMIP45
Category
Blowers And Inserts
Colour
Stainless

Features

Maximum CFM
Choice of internal or external centrifugal blowers from 500 to 1500 CFM
Manufacturers Warranty - Parts (Years)
1
Manufacturers Warranty - Labour (Years)
1

Dimensions

Width
45 in
Height
11.5 in
Depth
18.44 in
Weight
20 kg
DISCLAIMER: Please note these documents are for planning purposes only and may change without notice. For complete details, please refer to any documents packed with the product.
11.5″ / 29.21 cm
Height
20 kg / 44.09 lbs
Weight
18.44″ / 46.8376 cm
Depth
45″ / 114.3 cm
Width
